Specifications

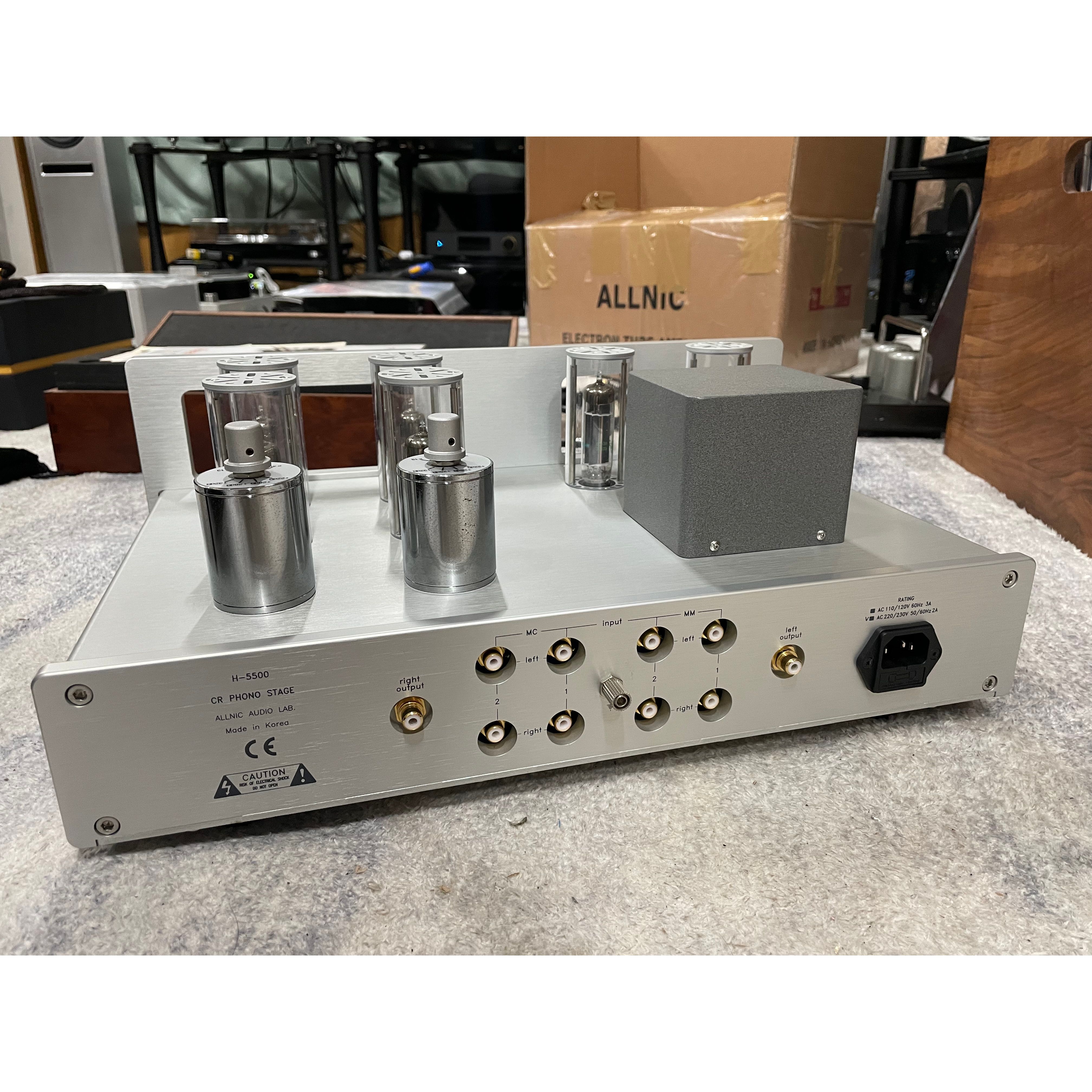

Inputs: Four (4) total, 2 each of MM and MC all unbalanced (RCA)
Outputs: One (1) pair unbalanced (RCA)
Frequency Response: 20Hz -20kHz (±0.3dB)
Voltage Gains: MM +38dB (1kHz); MC +22, +26, +28, +32dB (1kHz)
Input Impedance: MC variable up to 280Ω; MM 47 kΩ
S/N Ration: -68dB (CCIR, 1kHz)
Tubes: E180CC x 4, 7233 x 1, 5654 x 1
Fuse: AC 2A, 250V
Dimensions: 430mm (17 inches) x 260mm (10.25 inches) x 170mm (6.7 inches) (W x D x H)
Weight: 8.2 kg (18 lbs) unpacked, 11 kg (24 lbs) packaged
